Production Details Of Aluminum Solar Panel Frames
Inside the Aluminum Frame of a Solar Panel: Precision Engineering Powers the Global Energy Transition
The unsung heroes of solar energy: aluminum frames provide structural stability, facilitate installation, and protect billions of dollars worth of clean energy assets from harsh environments for decades. As the solar industry moves toward megawatt-scale deployments, innovations in frame design—from asymmetrical cross-sections to AI-optimized geometry—are quietly reducing costs, improving sustainability, and pushing the mechanical performance limits of larger solar panels.
Precision Manufacturing Process of Aluminum Solar Frames
The manufacturing process of aluminum solar frames showcases the high precision of modern industry. It begins with specific aluminum alloys, which are melted, refined, and cast into long strips. At the heart of the process is hot extrusion. Heated aluminum billets are pressed under high pressure into custom-designed steel molds, ultimately forming continuous profiles with the required precise cross-sectional shape.
The Evolution of Aluminum Solar Panel Frame Cross-Section Design
The cross-sectional design of aluminum profiles is a prime example of the synergy between engineering and economic considerations. Its shape must balance conflicting needs: maximizing strength while minimizing material usage, ensuring panel stability, and facilitating installation.
• Conventional Symmetrical Design: Early designs often mimicked the shapes of standard windows and doors.
• Modern Asymmetrical and Lightweight Design: Contemporary frames are specifically designed for angled solar panel installation; the carefully designed placement of materials directly reduces material costs and carbon footprint.
Innovation Frontier: Smarter Assembly and Installation of Aluminum Solar Panel Frames
Beyond the extrusion process itself, the assembly and installation methods of aluminum solar panels are constantly innovating.
• Corner Connection Technology: Utilizing integrated multi-axis connection components with mortise and tenon joints, robust three-dimensional reinforcement is provided without sacrificing internal space, resulting in a stronger, cleaner connection without exposed screw heads.

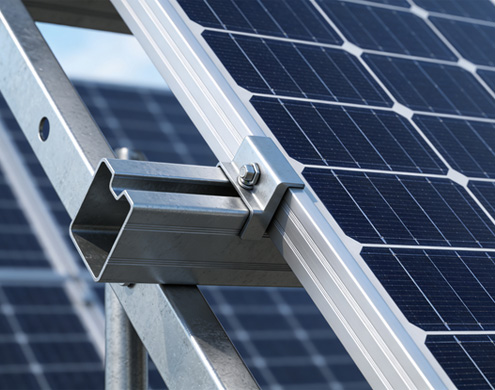

• Installation-friendly design: The innovative design features an open-source, bottom-mounted frame that is compatible with simple wooden or metal frames, securing the panels from below without the need for specialized clamps, thus speeding up the installation process and reducing system costs.
Aluminum frames, once merely a simple auxiliary element in structural design, have evolved into a key high-tech component in the value proposition of solar power generation – the aluminum solar frame. As the industry continues to grow, subtle changes in extrusion design, materials science, and assembly will continue to be crucial pillars in building a more economical and sustainable solar-driven future.
